Description
Replacement UV Lamp for Viqua Trojan UVMax C & D UV Systems
Keep your Viqua UVMax C or D system delivering safe, bacteria-free water with this compatible replacement lamp. Annual replacement is essential — UV output degrades over time even when the lamp still appears to glow.
Compatibility
| Fits UV System | OEM Part # |
|---|---|
| Viqua Trojan UVMax C | 602805 |
| Viqua Trojan UVMax C4 | 602805 |
| Viqua Trojan UVMax C4-V | 602805 |
| Viqua Trojan UVMax D | 602805 |
| Viqua Trojan UVMax D4/Plus | 602805 |
| Viqua IHS (C/D series) | 602805 |
Lamp Specifications
- Lamp Length: 378mm
- Wattage: 60W

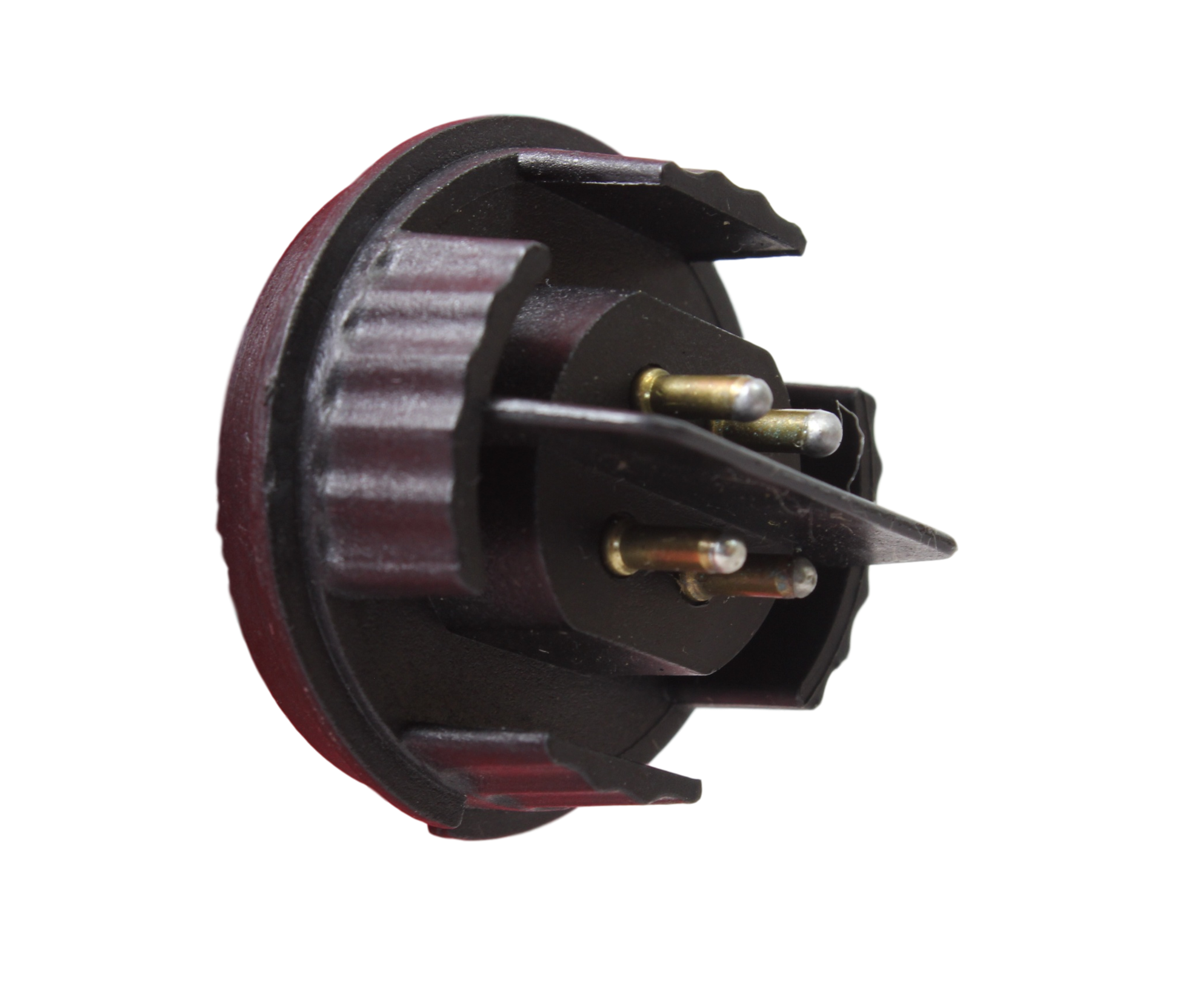

- Pin Connection Type: Trojan Pin
- Replaces OEM Part: 602805
Why Replace Annually?
UV lamps should be replaced every 12 months regardless of appearance. After one year of operation, UV output drops below the level required to effectively neutralise bacteria, viruses, and protozoa — even if the lamp is still glowing.
How to Replace Your UV Lamp
- Turn off the UV system and disconnect power
- Turn off the water supply
- Allow the lamp to cool for at least 5 minutes
- Carefully remove the old lamp — avoid touching the glass with bare hands
- Insert the new lamp and ensure pins are fully seated
- Reassemble, restore water supply, and power on
- Reset your system's lamp timer if applicable
Matching Glass Sleeve
Also need a replacement quartz glass sleeve? See the compatible glass sleeve for Viqua UVMax C & D — available separately.
