Description
For effective reduction of Chlorine from your water supply.

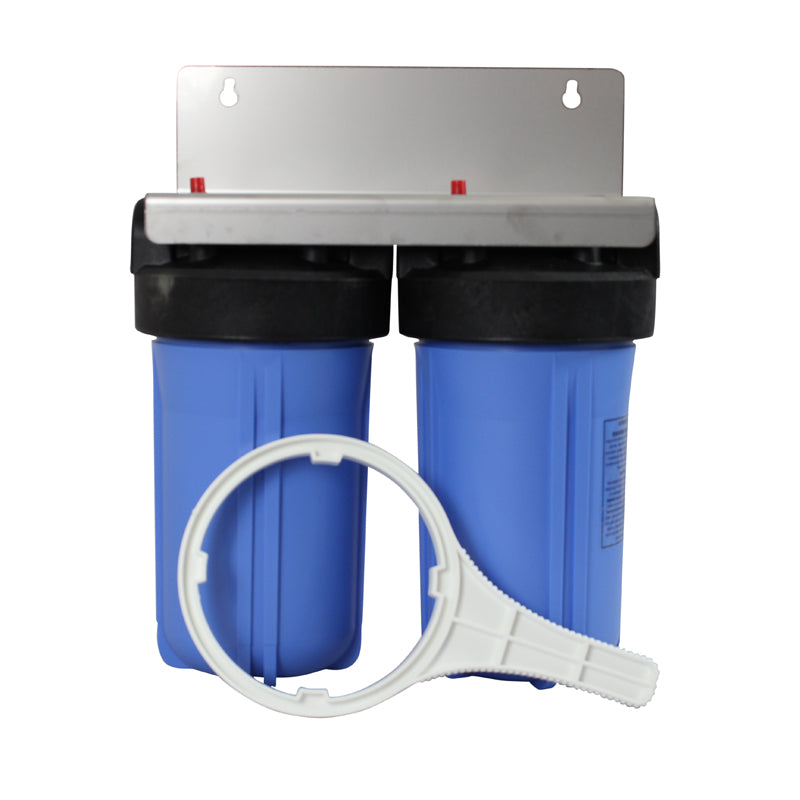

The WFO Whole House Chlorine Reductions Systems are 4 stage systems which are ideal for reducing Chlorine to high levels from your water supply.
There are 2 options, 10" and 20", and both are supplied with 2 cartridges and and an Opening Handle (Lock Spanner - SPLGE)
- Stage 1/2 - 10" or 20" x 4.5" Sediment Depth Cartridge 25 micron Outer / Granulated Activated Carbon Inner
- Stage 3 - 10" or 20" x 4.5" Carbon Block Cartridge 5 Micron Outer / Activated Carbon Block Inner
Component Specifications:
- Filter Housings
- Black Cap & Dark Grey Sump (Material - Polypropylene)
- Port Size - 1" FNPT
- Max Temperature - 37.7 deg C
- Max Pressure - 90 PSI (6.21 Bar)
- Cartridges
- Stage 1 & 2 - Hydronix SDP Series Cartridge
- Outer Layer (Stage 1) - 25 micron Polypropylene
- Inner Media (Stage 2) - Granulated Activated Carbon
- Temperature Rating - 4.4 deg C > 51.7 deg C
- Reorder Codes:
- 10" - SDP-4510
- Stage 3 & 4 - Hydronix CB Series Cartridge
- Outer Layer (Stage 3) - 5 Micron Polypropylene Wrap
- Inner Media (Stage 4) - Coconut Shell Carbon Block
- Temperature Rating - 4.4 deg C > 82.2 deg C
- Max Operating Pressure - 250 PSI (17 Bar)
- Max Differential Pressure - 100 PSID (6.8 Bar)
