Description

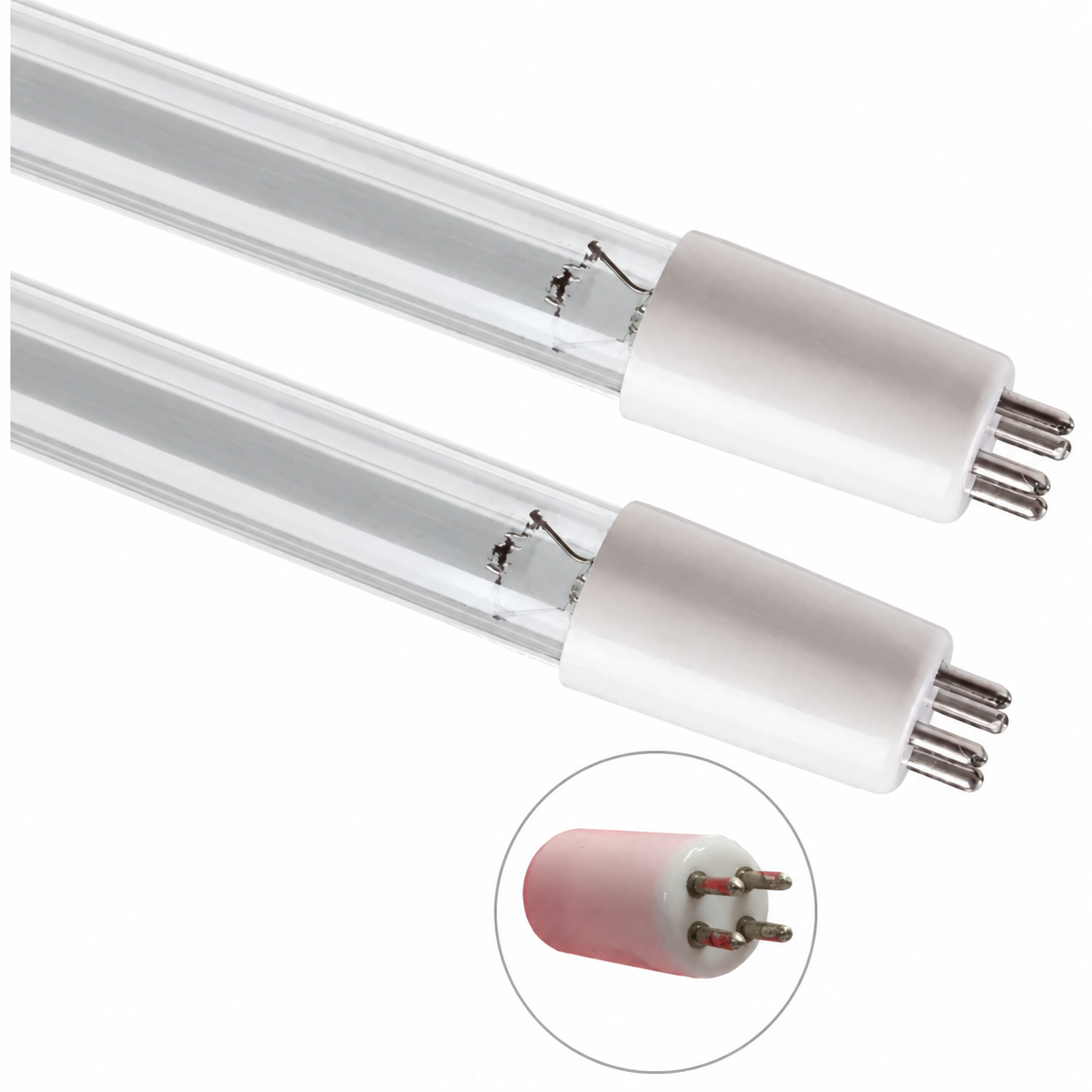

Compatible replacement UV lamp set for the CEG Eco-Pure UV-150 whole-house UV system.
This replacement set contains 2 x L-436-50-4E UV lamps, providing both lamps required to service the Eco-Pure UV-150 system.
What's Included
-
2 x L-436-50-4E UV lamps
-
Lamp length: 436 mm
-
Lamp wattage: 50 W each
-
Connection: T5 – 4 Pin Even
Compatible With
CEG Eco-Pure UV-150
The Eco-Pure UV-150 uses two UV lamps. This kit provides both compatible replacement lamps required for a complete lamp change.
Replacement For
-
Eco-Pure UV-150 UV Lamp
-
Eco-Pure lamp part number: 5680101000.010
-
UV-150 original specification: 48 W x 2 lamps
Our L-436-50-4E is a compatible 436 mm replacement lamp supplied as a set of two for the UV-150.
Please note: These are compatible replacement lamps and are not genuine CEG / Eco-Pure branded lamps.
When Should the UV Lamps Be Replaced?
UV lamps should generally be replaced every 12 months of operation, even if they are still glowing.
As a UV lamp ages, its germicidal UV output gradually decreases. A lamp can therefore continue to produce visible light while no longer providing the required UV intensity for effective water disinfection.
For systems treating drinking water, we recommend replacing both UV-150 lamps at the same time.
Installation Tips
Before replacing the lamps:
-
Turn off the power to the UV system.
-
Allow the existing lamps to cool before removal.
-
Handle new lamps by their ends and avoid touching the glass with bare hands.
-
Check and clean the quartz sleeves while the lamps are removed.
-
Replace a quartz sleeve if it is damaged, heavily scaled or permanently cloudy.
-
Follow the Eco-Pure UV-150 service instructions when restarting the system.
Not Sure If This Is the Correct Lamp?
The quickest way to confirm compatibility is to check:
System: Eco-Pure UV-150
Quantity: 2 lamps
Lamp length: approximately 436 mm
Connection: 4-pin even
If you're unsure, contact us with a photo of the UV system label or existing lamp and we'll help confirm the correct replacement.
Product Specifications
| Specification | Details |
|---|---|
| Compatible system | CEG Eco-Pure UV-150 |
| Our lamp code | L-436-50-4E |
| Quantity supplied | 2 |
| Lamp length | 436 mm |
| Lamp rating | 50 W |
| Pin configuration | T5 4 Pin Even |
| Original UV-150 lamp specification | 48 W x 2 |
| Original Eco-Pure part number | 5680101000.010 |
| Product type | Compatible replacement |
| Recommended replacement | Every 12 months |
