Description

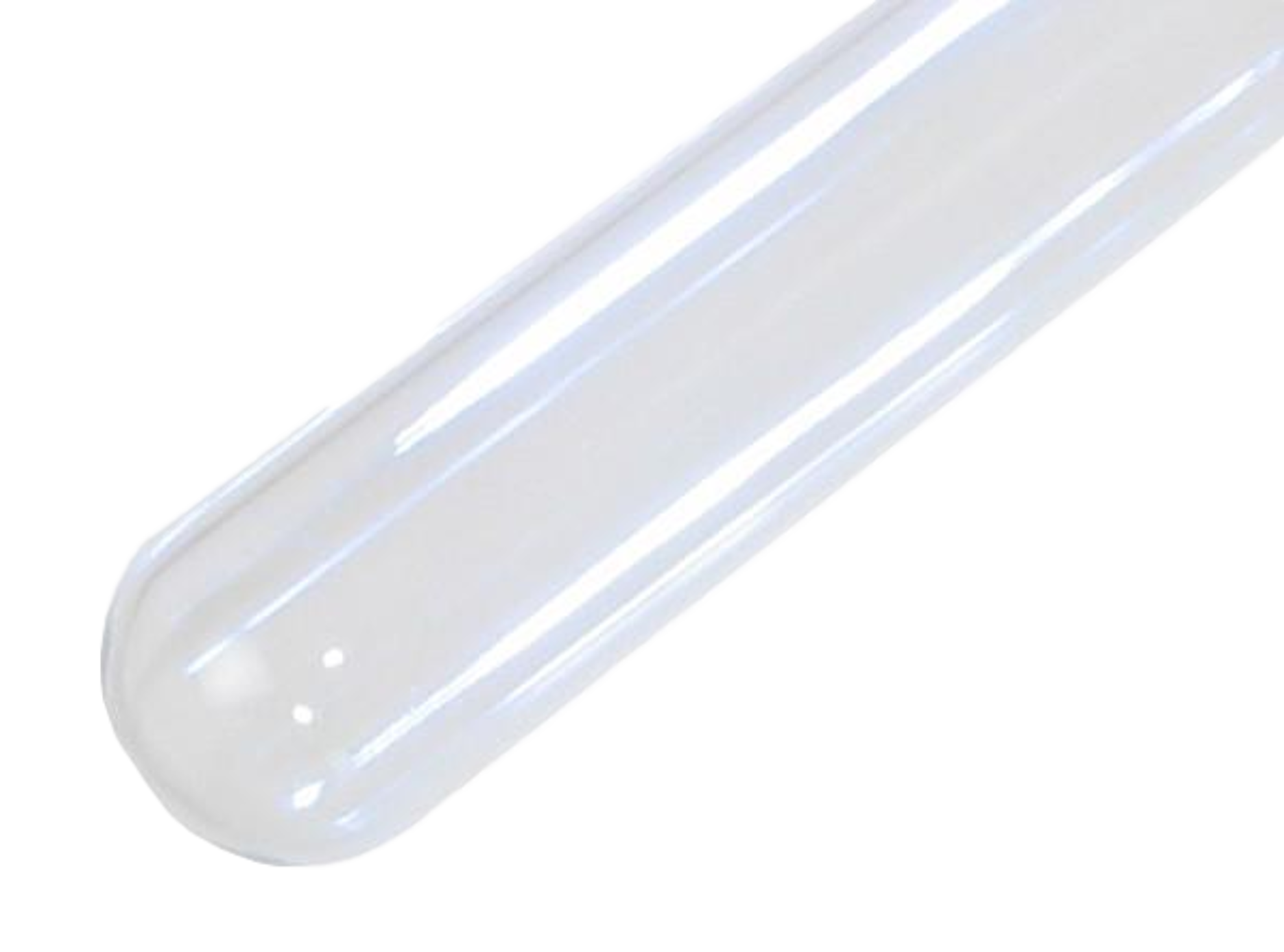

Replacement Glass Sleeve for Luminor LBH-151 & Aqua Filter B3M UV Sterilisers
This replacement quartz glass sleeve suits the Luminor Blackcomb LBH4-151, LBH6-151 and Aqua Filter B3M UV sterilisers. The sleeve protects the lamp from direct water contact while allowing UV light to pass through the chamber. Replace it whenever it shows signs of cloudiness, scaling, or damage.
Specifications
- Length: 466mm
- Sleeve Type: Single Open Ended
- Material: Quartz glass
- OEM Reference: RQ-420
Compatible With
- Luminor Blackcomb LBH4-151
- Luminor Blackcomb LBH6-151
- Aqua Filter B3M
- Replaces OEM sleeve code RQ-420
When Should You Replace the Glass Sleeve?
Inspect the sleeve whenever the UV lamp is replaced. If it shows cloudiness, mineral scale, staining, or cracking, replace it. Even light buildup can reduce UV effectiveness, especially in hard water or bore water systems.
Installation Notes
- Isolate water and power before opening the UV chamber
- Remove the old sleeve carefully to avoid breakage
- Clean the chamber seals before fitting the new sleeve
- Handle with clean gloves or a cloth to avoid fingerprints
- Check O-rings and replace if worn
