Description

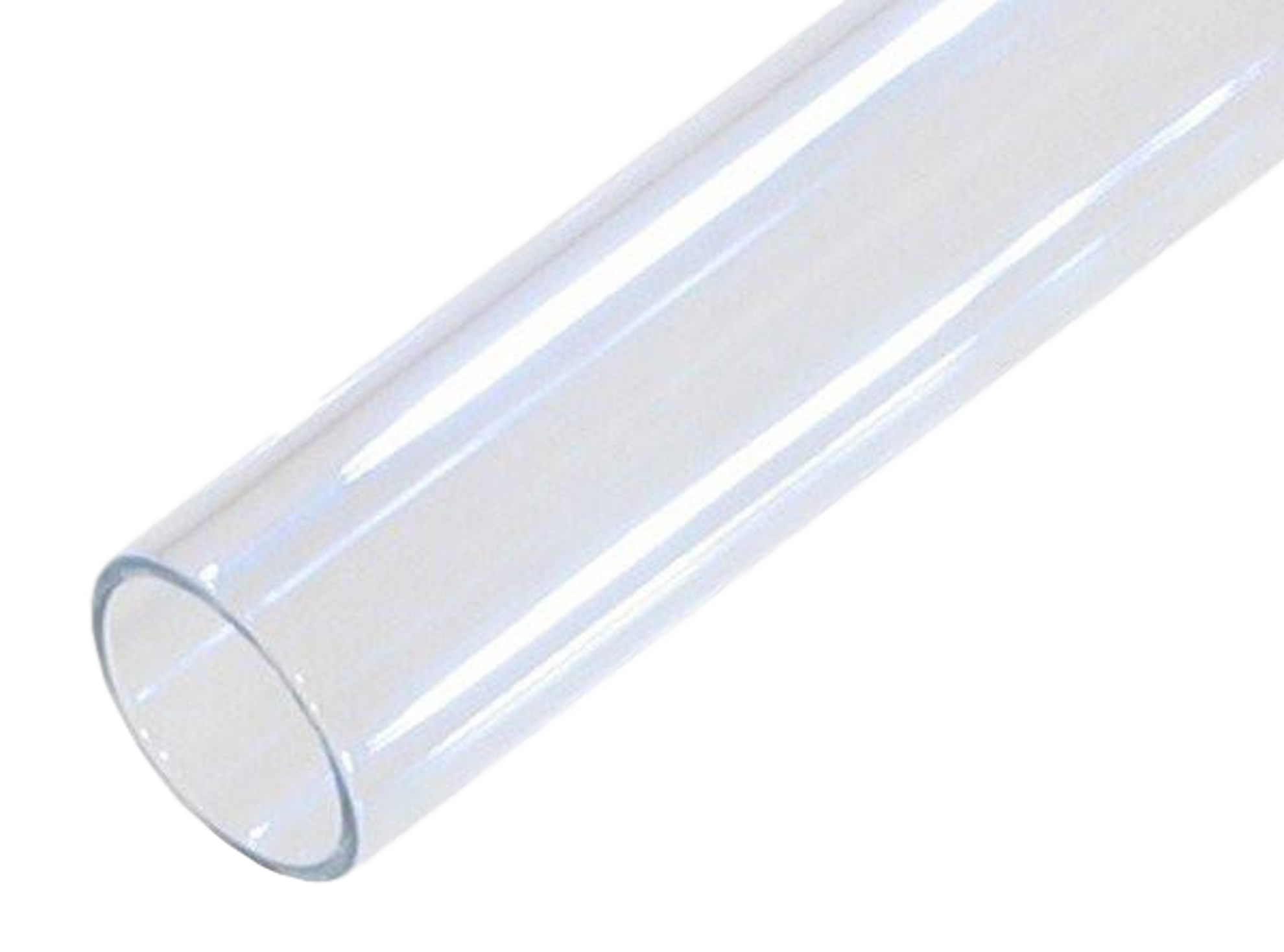

Replacement Glass Sleeve for Splenvue SE12 & Germicidalight UV12AS UV Sterilisers
This replacement quartz glass sleeve suits the Splenvue SE12 and Germicidalight UV12AS UV sterilisers. The sleeve protects the lamp from direct water contact while allowing UV light to pass through the chamber. Replace it whenever it shows signs of cloudiness, scaling, or damage.
Specifications
- Length: 890mm
- Sleeve Type: Single Open Ended
- Material: Quartz glass
- OEM Reference: EQS36
Compatible With
- Splenvue UVSE12
- Germicidalight UV12AS
- Replaces Splenvue OEM sleeve code EQS36
When Should You Replace the Glass Sleeve?
Inspect the sleeve whenever the UV lamp is replaced. If it shows cloudiness, mineral scale, staining, or cracking, replace it. Even light buildup can reduce UV effectiveness, especially in hard water or bore water systems.
Installation Notes
- Isolate water and power before opening the UV chamber
- Remove the old sleeve carefully to avoid breakage
- Clean the chamber seals before fitting the new sleeve
- Handle with clean gloves or a cloth to avoid fingerprints
- Check O-rings and replace if worn
Matching UV Lamp
Also need a replacement lamp? See the compatible UV lamp for Splenvue SE12 & Germicidalight UV12AS — available separately.
