Description

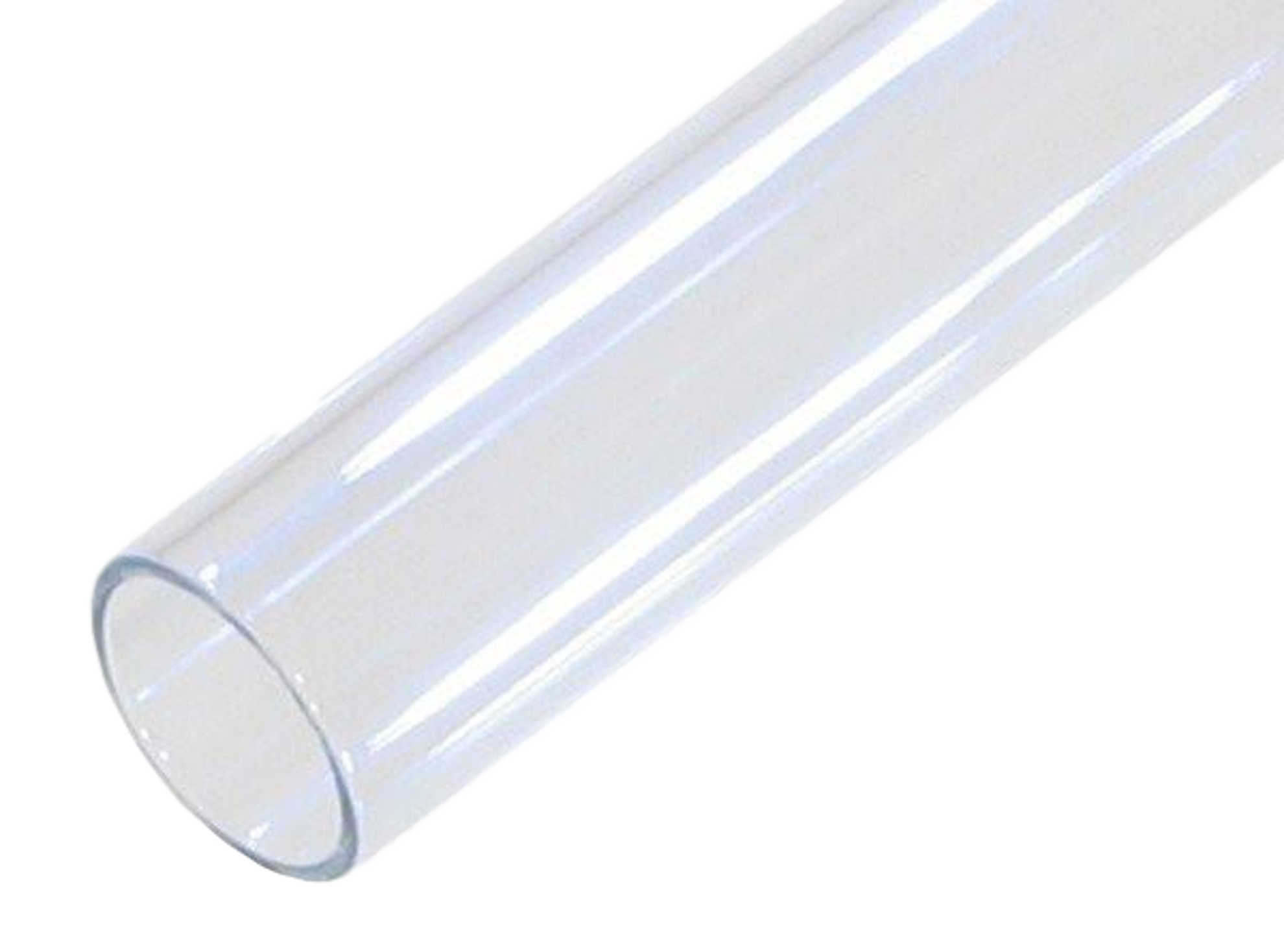

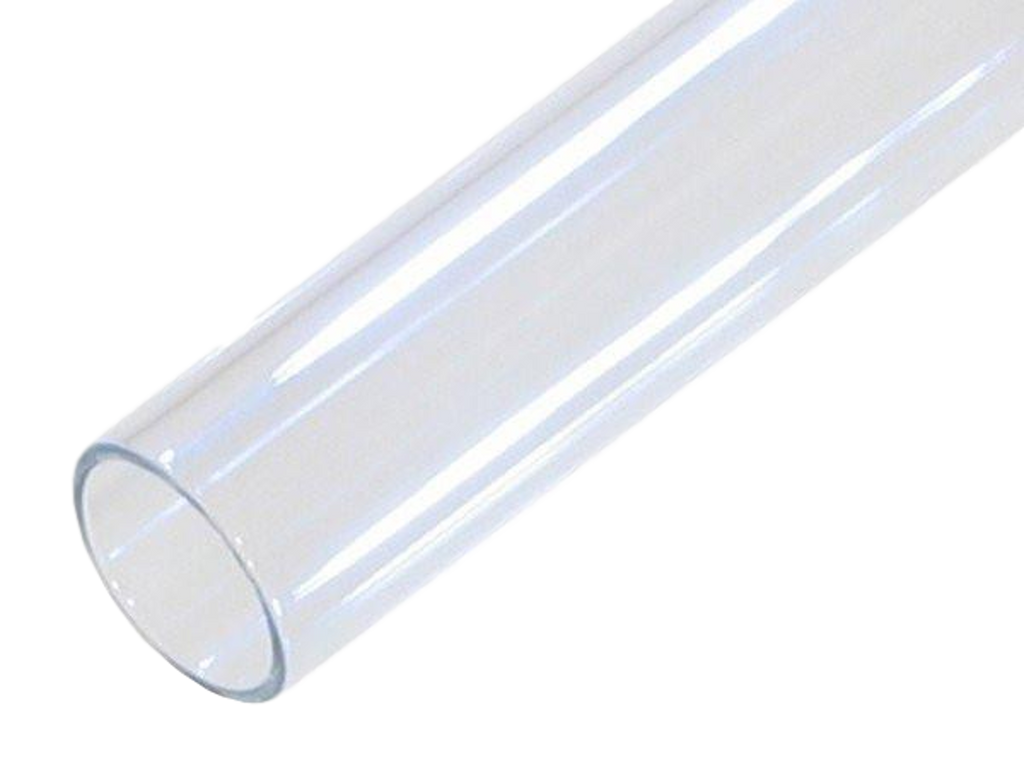

Replacement Glass Sleeve for Wyckomar UV1500 & UV5000 UV Systems
This replacement quartz glass sleeve suits the Wyckomar UV1500 and UV5000 UV sterilisers. The sleeve protects the lamp from direct water contact while allowing UV light to pass through the chamber. Replace it whenever it shows signs of cloudiness, scaling, or damage.
Specifications
- Length: 1181mm
- Sleeve Type: Double Open Ended
- Material: Quartz glass
- OEM Reference: RQS-1181
Compatible With
- Wyckomar UV1500
- Wyckomar UV5000
- Replaces Wyckomar OEM sleeve code RQS-1181
When Should You Replace the Glass Sleeve?
Inspect the sleeve whenever the UV lamp is replaced. If it shows cloudiness, mineral scale, staining, or cracking, replace it. Even light buildup can reduce UV effectiveness, especially in hard water or bore water systems.
Installation Notes
- Isolate water and power before opening the UV chamber
- Remove the old sleeve carefully to avoid breakage
- Clean the chamber seals before fitting the new sleeve
- Handle with clean gloves or a cloth to avoid fingerprints
- Check O-rings and replace if worn
Matching UV Lamp
Also need a replacement lamp? See the compatible UV lamp for Wyckomar UV1500 & UV5000 — available separately.
