Description
NZ Made Replacement Filters for Poolstore Bowman Pools & Spas
Keep your pool or spa water clear with New Zealand-made Magnum replacement filter cartridges to suit Poolstore Bowman systems. Made with Quality Filtration Fabric, these pleated cartridges capture dirt and debris as water passes through your filtration system.
Select your Bowman model before adding to cart. Each variant has its own model code and cartridge dimensions, as shown below.
Features
-
Manufactured in New Zealand by Magnum Filters.
-
Quality Pleated Filtration Fabric.
-
Washable cartridges for repeated use with regular cleaning.
-
Moulded knob handle at the top and moulded cone adaptor at the bottom.
-
177 mm outside diameter across all models listed below.

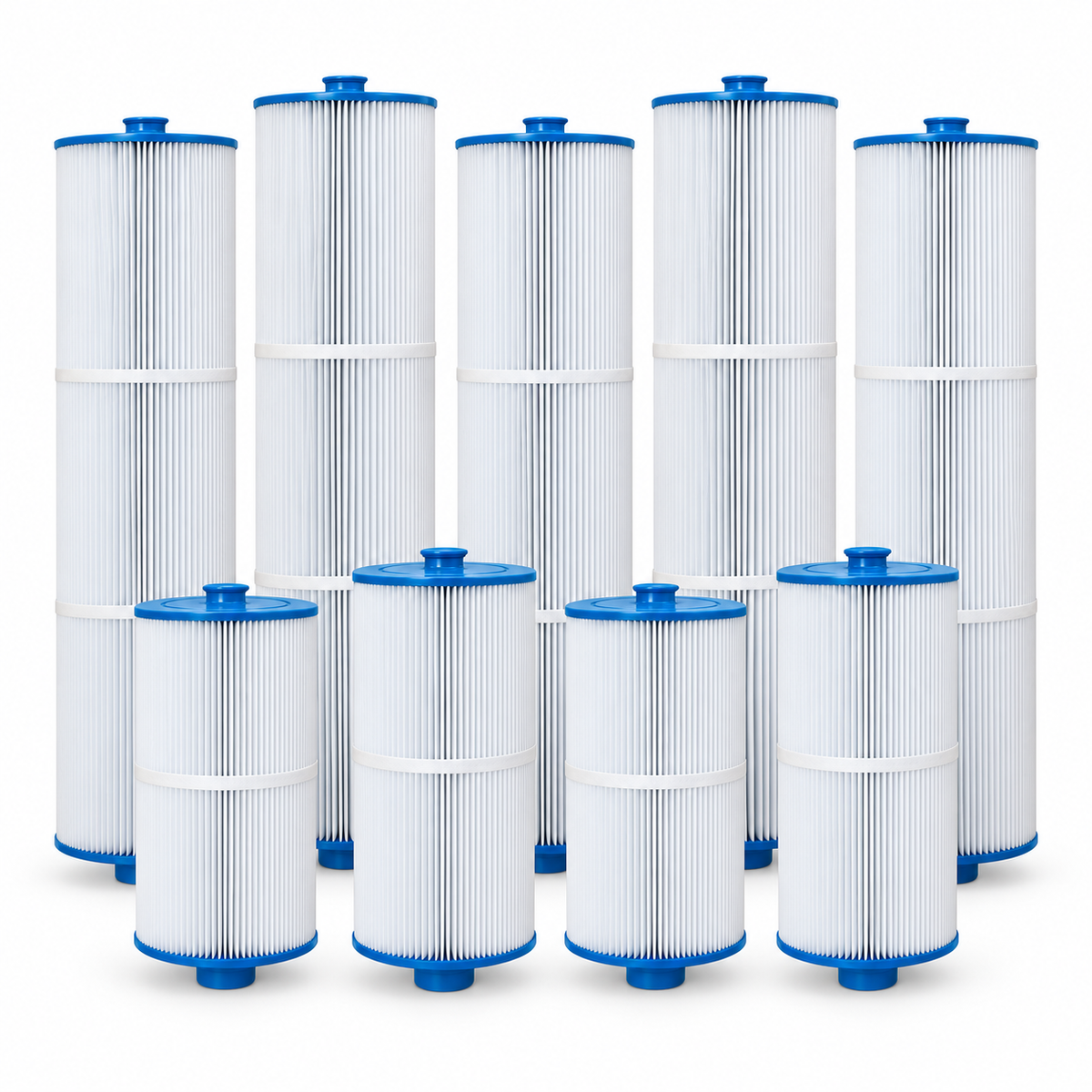

Bowman Models and Dimensions
| Bowman model | Magnum code / SKU | Length | Outside diameter |
|---|---|---|---|
| C0755 | BM55 | 455 mm | 177 mm |

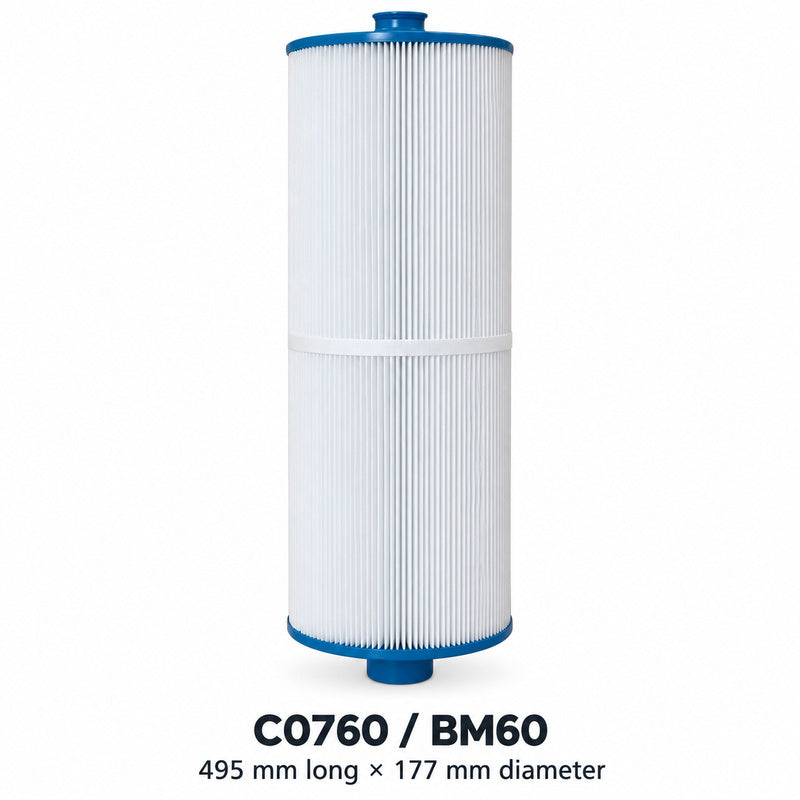

| C0760 | BM60 | 495 mm | 177 mm |

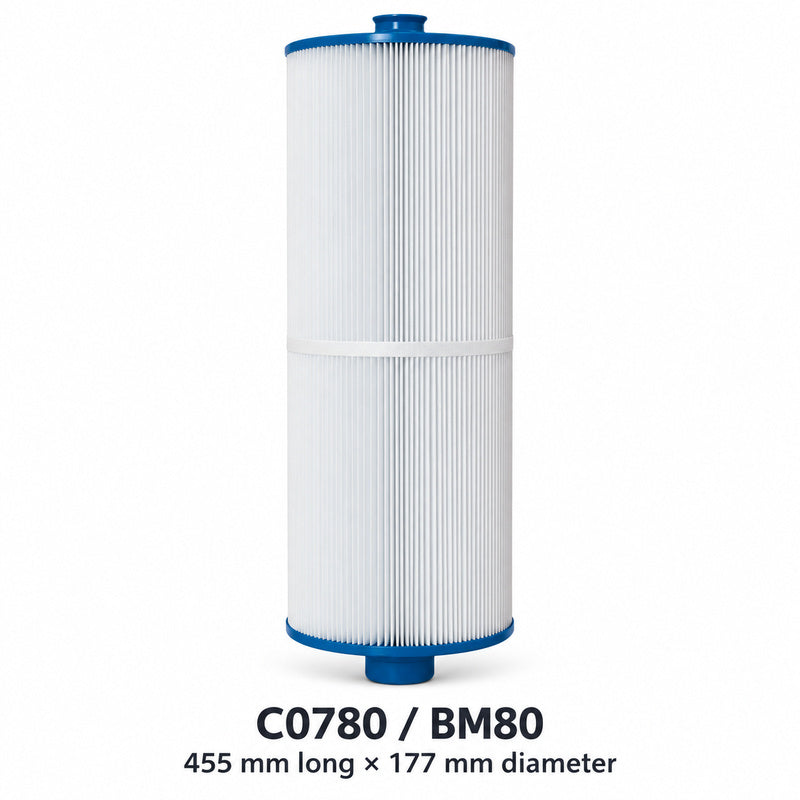

| C0780 | BM80 | 455 mm | 177 mm |

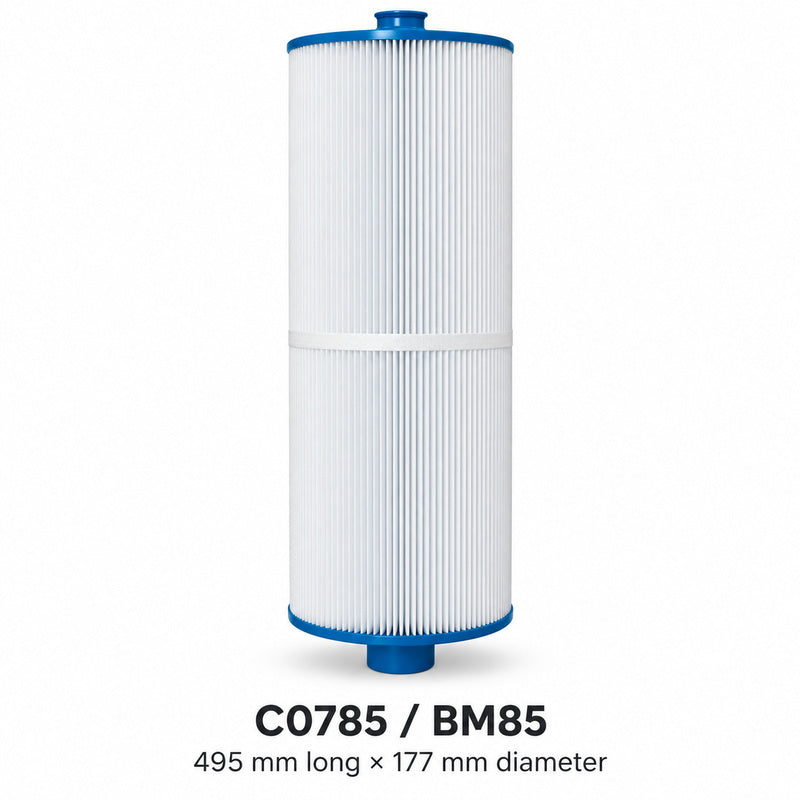

| C0785 | BM85 | 495 mm | 177 mm |

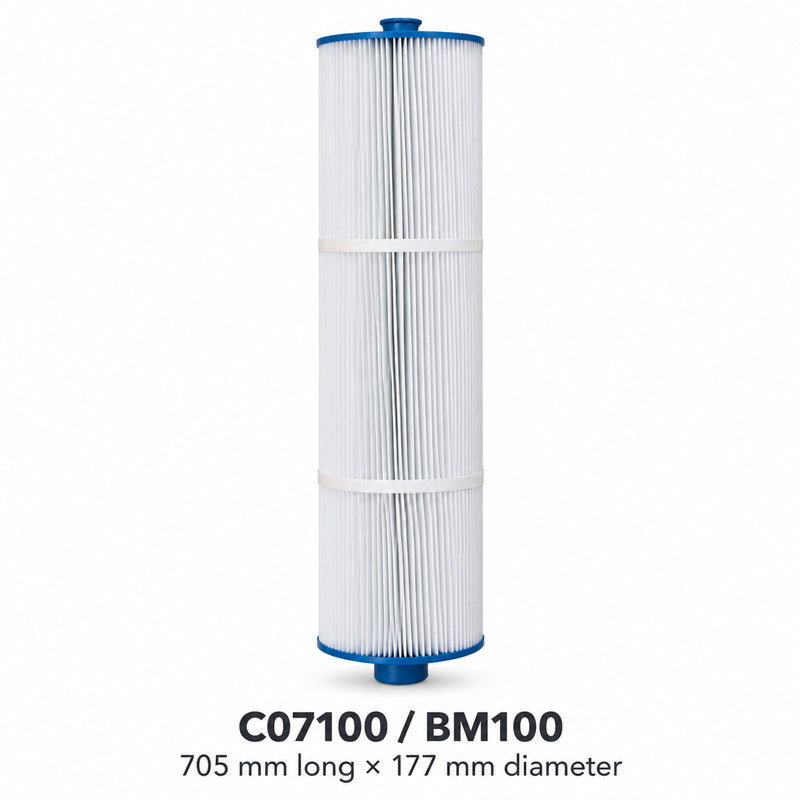

| C07100 | BM100 | 705 mm | 177 mm |

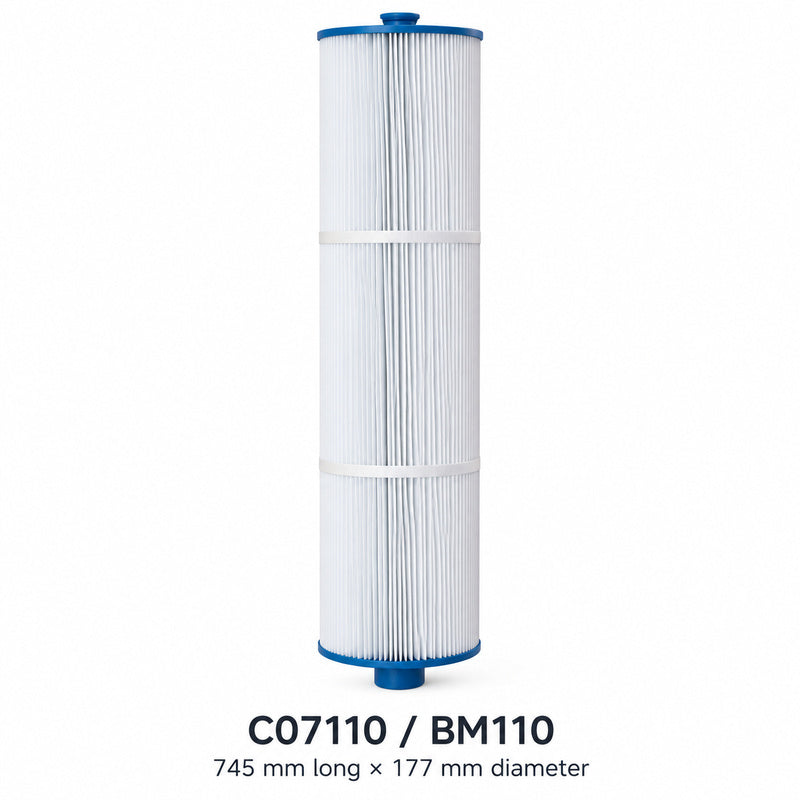

| C07110 | BM110 | 745 mm | 177 mm |

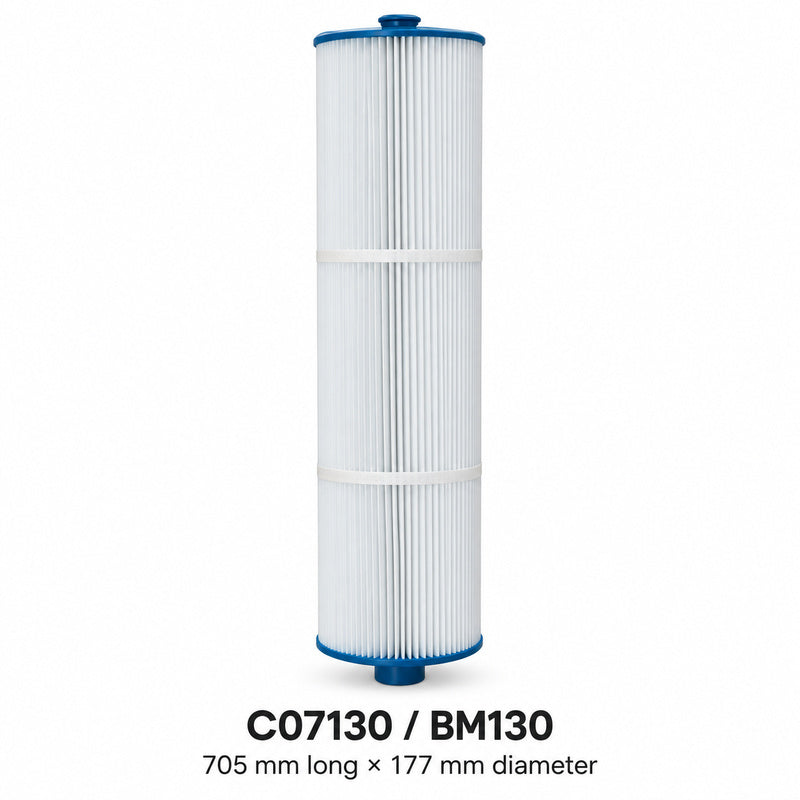

| C07130 | BM130 | 705 mm | 177 mm |

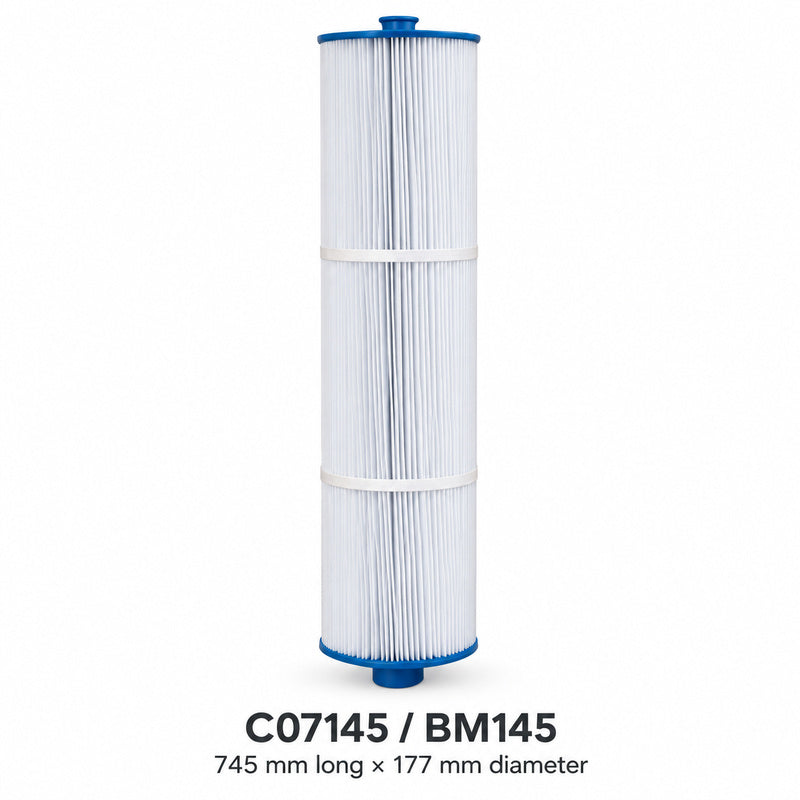

| C07145 | BM145 | 745 mm | 177 mm |

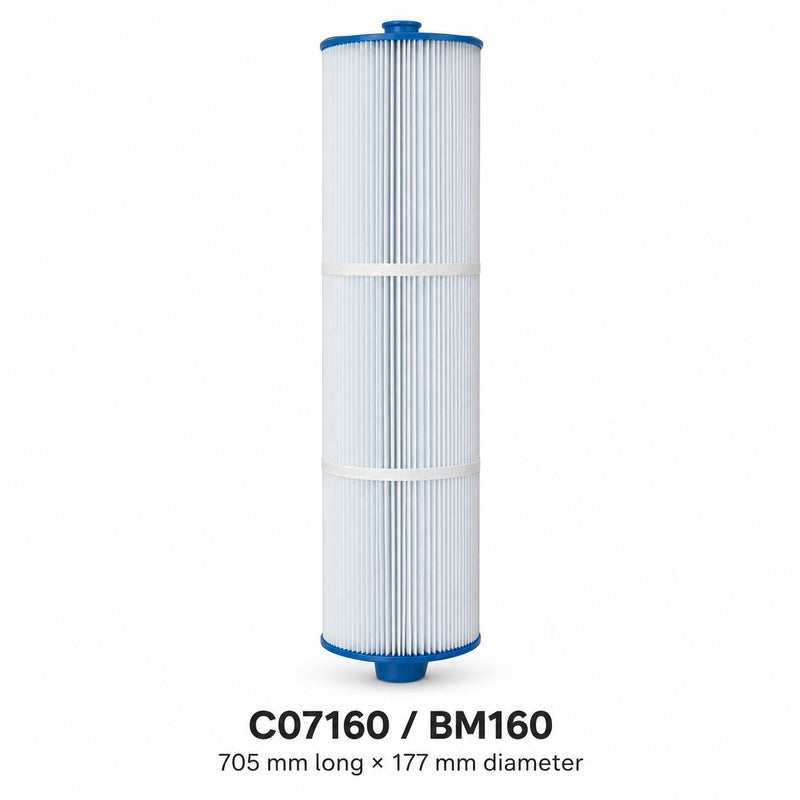

| C07160 | BM160 | 705 mm | 177 mm |
When measuring cartridge length, do not include the top handle.
Choosing the Correct Cartridge
Check the model or part number on your existing cartridge or filter housing, then compare the length, outside diameter and both end fittings. Some Bowman models share the same dimensions, so match the model code as well as the size.
These cartridges have a knob handle and cone adaptor. If your existing filter has different end fittings, contact us before ordering.
Cleaning and Replacement
Clean the cartridge regularly with a garden hose, rinsing between the pleats from top to bottom. For a deeper clean, use a cartridge filter cleaning solution and rinse thoroughly before refitting. Avoid pressure washers and stiff brushes, which can damage the filter fabric.
Replace the cartridge if it is damaged or water flow remains restricted after cleaning. Service life depends on use, water conditions and maintenance.
Need help identifying your Bowman filter? Send us photos of the cartridge, both ends and any model numbers, along with its measurements. We can help you choose the correct replacement.
