Description

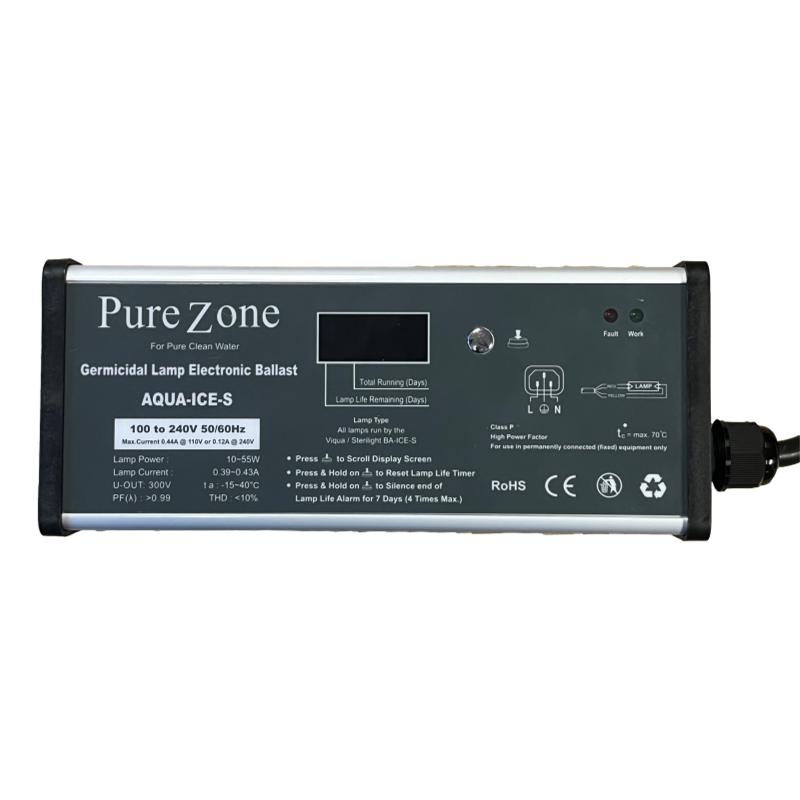

AQUA-ICE-S UV Ballast Controller — Compatible with Viqua BA-ICE-S
Replace your faulty Viqua UV ballast with this compatible AQUA-ICE-S controller, designed for Viqua and Sterilight UV systems with staggered 4 pin connections. The built-in 365-day countdown timer reminds you when it's time to replace your UV lamp.
Compatibility
| Fits UV Systems | Notes |
|---|---|
| Viqua UV systems | Staggered 4 Pin |
| Sterilight UV systems | Staggered 4 Pin |
| Replaces Viqua BA-ICE-S | Direct replacement |
Ballast Specifications
- Brand: PureZone
- Model: AQUA-ICE-S
- Lamp Wattage Range: 10W – 55W

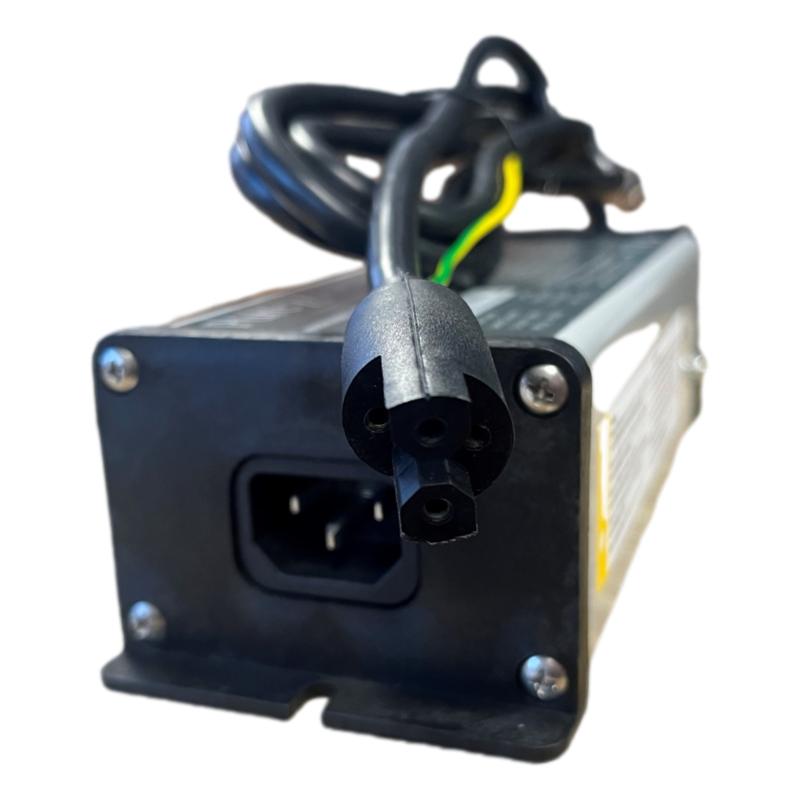

- Pin Connection Type: Staggered 4 Pin (Viqua/Sterilight)
- Countdown Timer: 365-day built-in
Why Replace a Faulty Ballast?
A failing ballast can cause the UV lamp to flicker, underperform, or fail completely — leaving your water untreated. If your UV system is not disinfecting effectively, the ballast is often the culprit. Always replace with a compatible wattage-rated ballast.
How to Replace Your UV Ballast
- Turn off the UV system and disconnect power
- Turn off the water supply
- Remove the ballast cover
- Disconnect the lamp and power leads from the old ballast
- Install the new ballast and reconnect all leads
- Replace the cover, restore water supply, and power on
- Reset the 365-day countdown timer
- Verify the UV lamp is operating correctly
Matching UV Lamp
Also need a replacement UV lamp? See our replacement lamps collection for compatible Viqua & Sterilight lamps.
