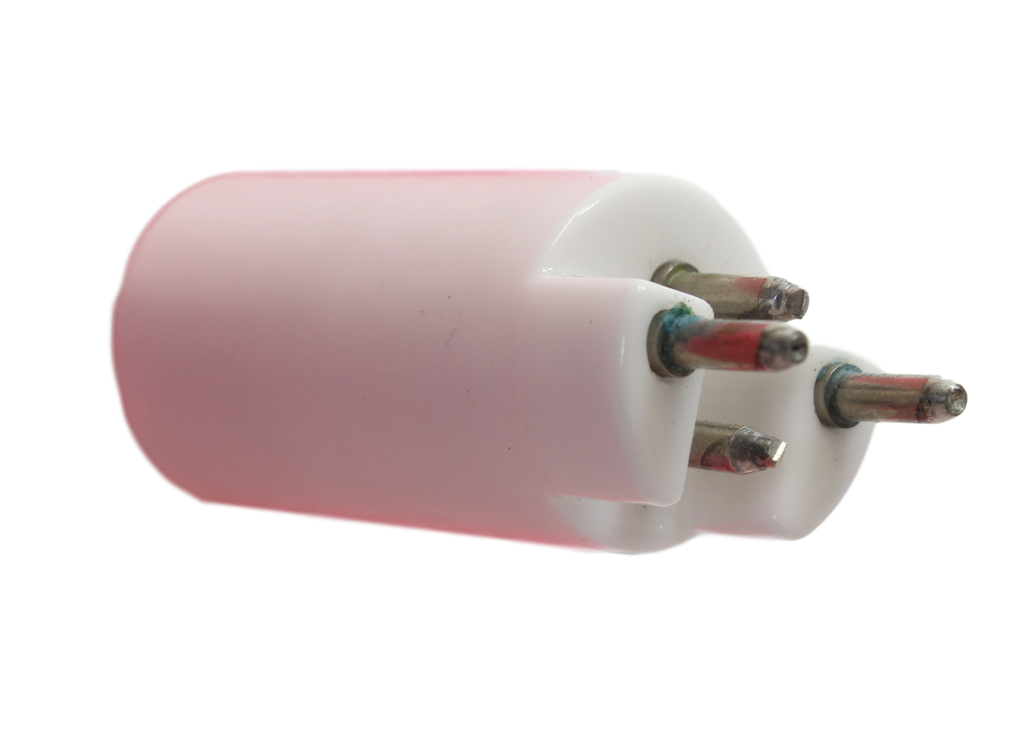

Replacement UV Lamp RL-820 for Luminor Blackcomb LB-101 UV Systems
Keep your Luminor Blackcomb LB-101 UV system running at full disinfection power with this compatible RL-820 replacement lamp. Annual replacement is essential — UV output degrades over time even when the lamp still appears to glow.
Compatibility
| Fits UV System | OEM Lamp Code |
|---|---|
| Luminor Blackcomb LB4-101 | RL-820 |
| Luminor Blackcomb LB5-101 | RL-820 |
| Luminor Blackcomb LB6-101 | RL-820 |
| Luminor Blackcomb LB6-101A | RL-820 |
| Luminor Blackcomb LB5-101B | RL-820 |
| Luminor Blackcomb LB6-101B | RL-820 |
| Mountain Fresh Premium Residential UV Kit 41LPM | RL-820 |
Lamp Specifications
- Lamp Length: 827mm
- Wattage: 39W
- Pin Connection Type: Luminor Pin
- Replaces OEM Part: RL-820
Important Note
This lamp does not include the reset key/card used to reset the countdown timer on Luminor ballasts. The lamp will function normally, but the timer may not reset unless you already have the original key.
Why Replace Annually?
UV lamps should be replaced every 12 months regardless of appearance. After one year of operation, UV output drops below the level required to effectively neutralise bacteria, viruses, and protozoa — even if the lamp is still glowing.
How to Replace Your UV Lamp
- Turn off the UV system and disconnect power
- Turn off the water supply
- Allow the lamp to cool for at least 5 minutes
- Carefully remove the old lamp — avoid touching the glass with bare hands
- Insert the new lamp and ensure pins are fully seated
- Reassemble, restore water supply, and power on
- Reset your system's lamp timer if applicable
Matching Glass Sleeve
Also need a replacement quartz glass sleeve? See the compatible glass sleeve for Luminor LB-101 — available separately.
