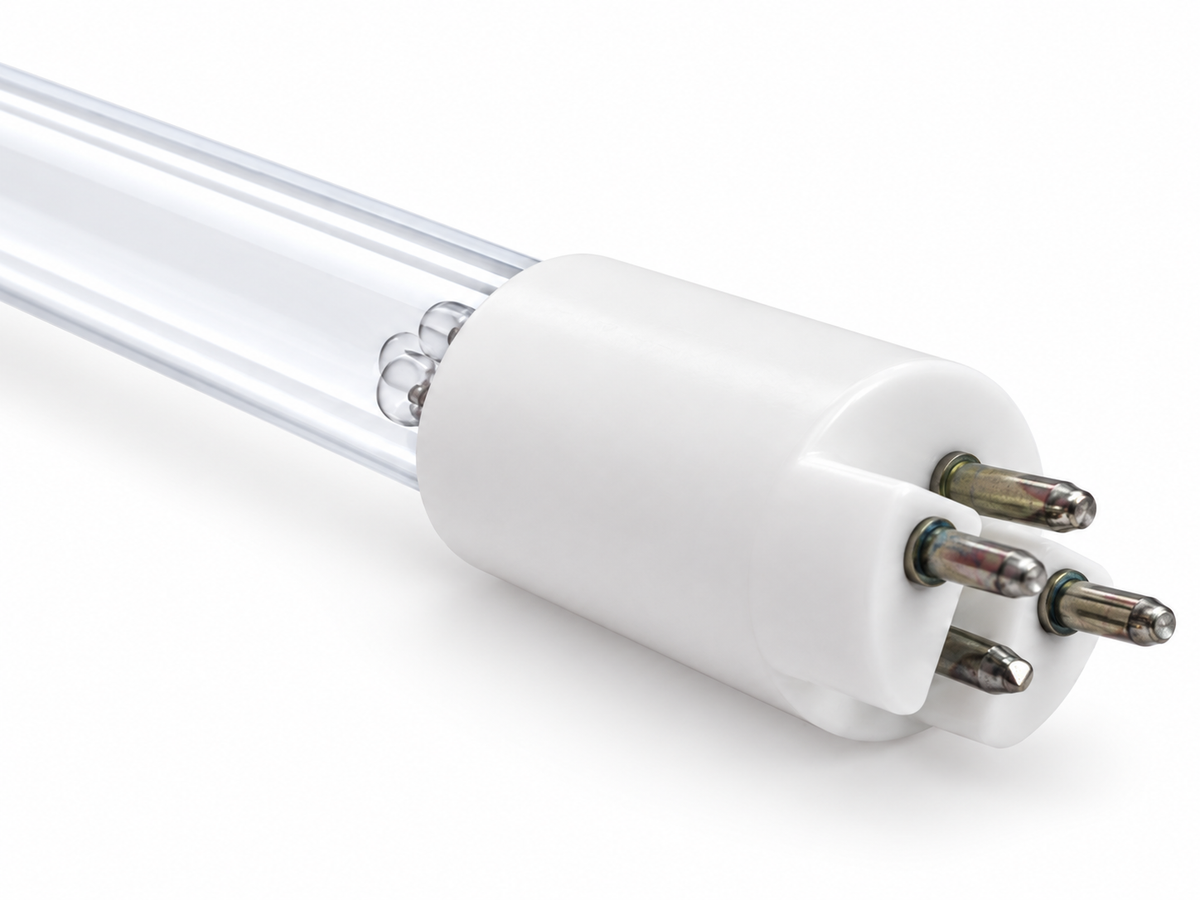

UV Lamp compatible with Luminor Blackcomb RL-850 – 850mm 42W

Replacement UV Lamp for Luminor Blackcomb RL-850 Systems

High-quality aftermarket UV replacement lamp designed to match the specifications of the Luminor RL-850 lamp used in selected Luminor Blackcomb UV water treatment systems.

Designed for germicidal UV water disinfection, this 42W lamp produces UV-C light at approximately 254nm. UV lamps should be replaced regularly even when they are still visibly glowing, as their effective UV output reduces with use.

Lamp Specifications

• Replaces: Luminor RL-850

• Luminor Reference: 140004

• Lamp Length: 850mm

• Lamp Wattage: 42W

• Lamp Diameter: 15mm

• UV Wavelength: 254nm

• Lamp Type: Standard Output Low Pressure UV-C

• Pin Type: Luminor B54

• Connection: 4-pin, single-ended, multi-level base

• Replacement Interval: Approximately 9,000 hours / 12 months

Compatible Luminor Blackcomb Systems

The RL-850 is used in the “-20” series Luminor Blackcomb UV systems, including:

• Luminor Blackcomb LB4-20 Series

• Luminor Blackcomb LB5-20 Series

• Luminor Blackcomb LB6-20 Series

• New Zealand variants including LB4-204, LB5-204 and LB6-204, where RL-850 is specified

Always check the model number on your UV chamber or the part number printed on your existing lamp before ordering.

Important – Luminor Lamp Key / LightLock Systems

Please check your controller before ordering.

Luminor Blackcomb 5.1 and 6.1 controllers use Luminor's Lamp Key / LightLock system. Genuine Luminor replacement lamps are supplied with a matching electronic lamp key which resets and authorises the controller.

This aftermarket replacement lamp does not include the Luminor electronic lamp key.

• Blackcomb 4.1: Uses a manual lamp timer reset and does not require a replacement lamp key.

• Blackcomb 5.1 and 6.1: Require a compatible lamp key for correct controller operation and lamp-life reset.

If your controller has a lamp key fitted into the side of it, please contact us before ordering so we can confirm suitability.

Why Replace Your UV Lamp Annually?

A UV lamp can continue to glow even after its effective germicidal UV output has declined. For reliable water disinfection, the lamp should be replaced according to the UV system manufacturer's recommended schedule.

For Luminor Blackcomb standard-output systems using the RL-850, the recommended lamp life is approximately 9,000 hours, which is roughly one year of continuous operation.

Replacing the Lamp

1. Disconnect the UV system from power.

2. Allow the existing lamp to cool.

3. Carefully disconnect and remove the old lamp.

4. Avoid touching the glass of the new lamp with bare hands — use clean gloves or a lint-free cloth.

5. Carefully insert the replacement lamp and reconnect the lamp plug.

6. Restore power.

7. Reset the lamp-life timer according to your Blackcomb controller instructions.

Never look directly at an operating UV-C lamp.

Not Sure Which Lamp You Need?

Luminor Blackcomb systems use several different lamp lengths and wattages.

If you are unsure whether the RL-850 is correct, send us the model number from the stainless-steel UV chamber or a photo of your existing lamp and connection. We can help identify the correct replacement.

NZ Stock | Fast NZ Shipping | NZ Customer Support

---
