Description
Replacement UV Lamp RL6 for Puretec Hybrid G, R & WU-UV Series Systems
Keep your Puretec Hybrid UV system running at full disinfection power with this compatible RL6 replacement lamp. Annual replacement is essential — UV output degrades over time even when the lamp still appears to glow.
Compatibility
| Fits UV System | Replaces Part # |
|---|---|
| Puretec Hybrid G6, G7, G8, G9, G12, G13 | RL6 |
| Puretec Hybrid R10, R11 | RL6 |
| Puretec WU-UV100, WU-UV200 | RL6 |
| UV Dynamics 400E Lamp (400128) | RL6 |

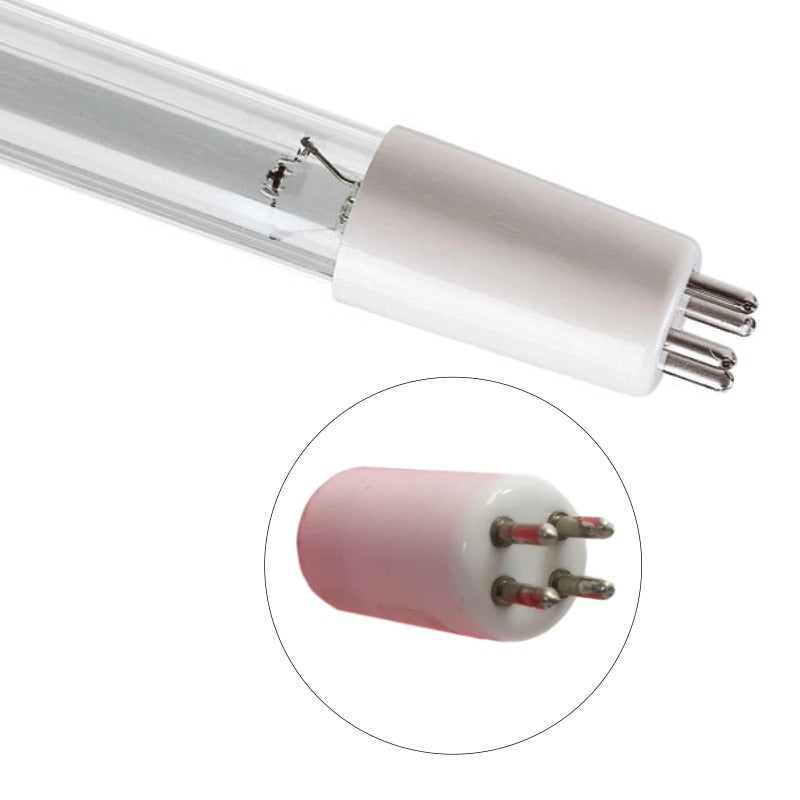

Lamp Specifications
- Lamp Length: 520mm
- Wattage: 46W
- Pin Connection Type: T5 — 4 Pin Even
- Replaces Original Part: RL6 (Puretec)
Why Replace Annually?
UV lamps should be replaced every 12 months regardless of appearance. After one year of operation, UV output drops below the level required to effectively neutralise bacteria, viruses, and protozoa — even if the lamp is still glowing. Remember to reset the 365-day countdown ballast after replacement.
How to Replace Your UV Lamp
- Turn off the UV system and disconnect power
- Turn off the water supply
- Allow the lamp to cool for at least 5 minutes
- Carefully remove the old lamp — avoid touching the glass with bare hands
- Insert the new lamp and ensure pins are fully seated
- Reassemble, restore water supply, and power on
- Reset the 365-day countdown ballast per your System Service Manual
Matching Glass Sleeve
Also need a replacement quartz glass sleeve? See our replacement glass sleeves collection for compatible options.
