Description

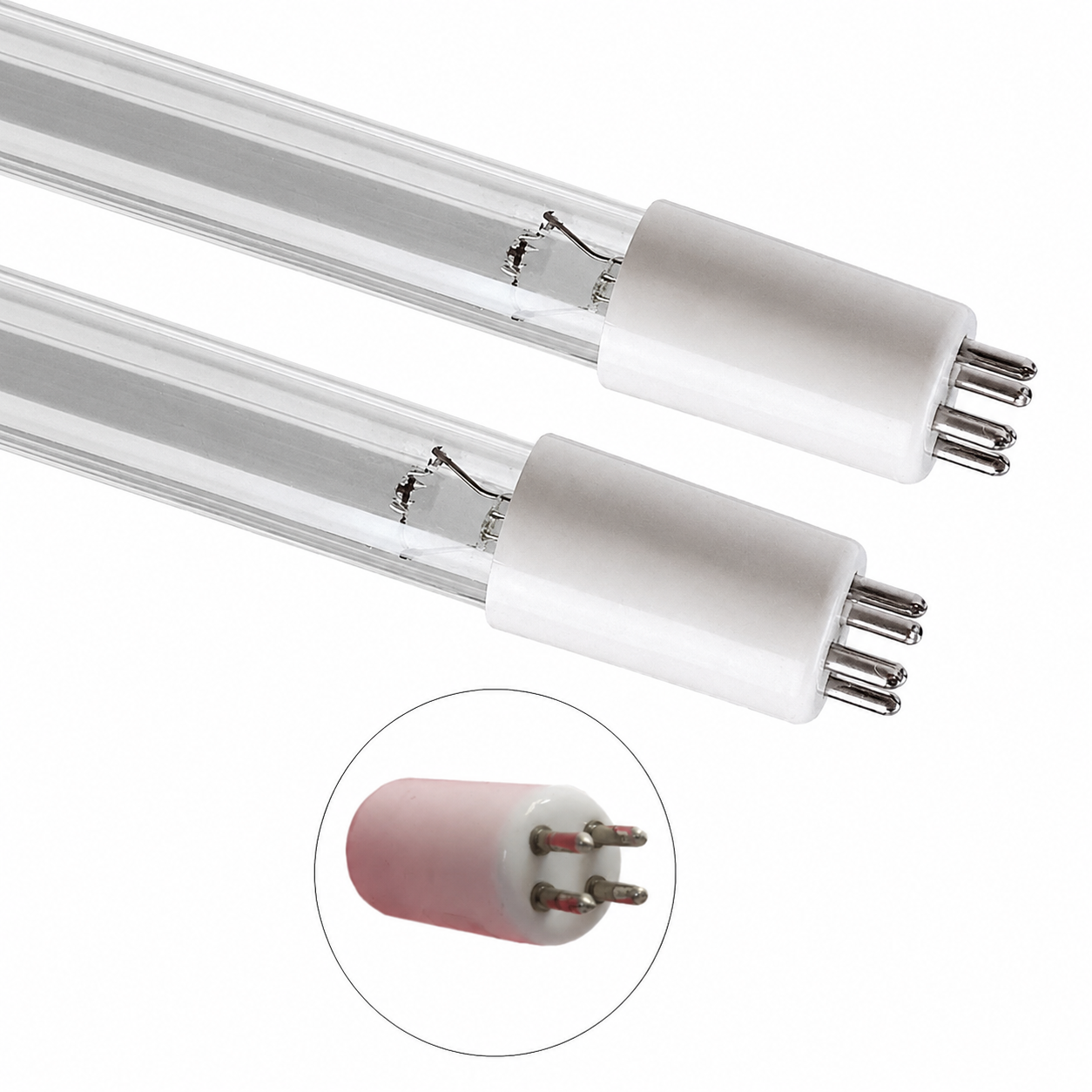

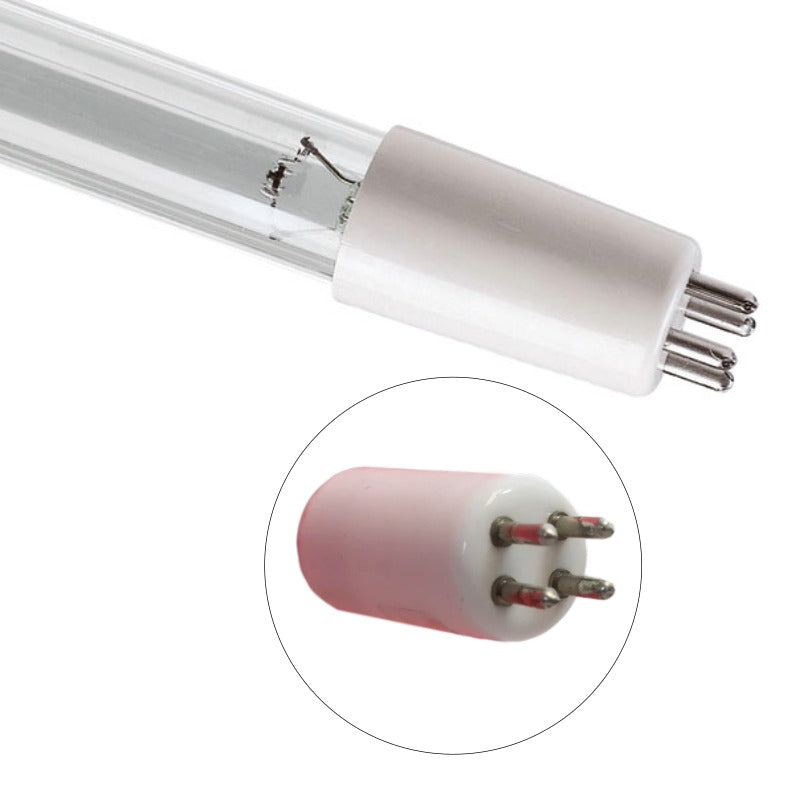

Replacement UV Lamp 840mm 40W — Compatible with RL4 for use in Puretec Radfire R2700 & R5000
Quality replacement UV lamp for the Puretec Radfire series. Annual replacement is essential — UV output degrades over time even when the lamp still appears to glow.
Compatibility
| Fits UV System | Lamps Required | Notes |
|---|---|---|
| Puretec Radfire R2700 | 1 | Replaces OEM RL4 lamp |
| Puretec Radfire R5000 | 2 | Replaces OEM RL4 lamps (Qty 2) |
Lamp Specifications
| Specification | Detail |
|---|---|
| Lamp Length | 840mm |
| Wattage | 40W |
| Pin Connection Type | T5 — 4 Pin Even |
| Part Codes | L-843-40-4E / L-843-40W-4E / GPH840 / GPH840N/S / ESS-A39T5UV / RL4 |
Why Replace Annually?
UV lamps should be replaced every 12 months regardless of appearance. After one year of operation, UV output drops below the level required to effectively neutralise bacteria, viruses, and protozoa — even if the lamp is still glowing.
How to Replace Your UV Lamp
- Turn off the UV system and disconnect power
- Turn off the water supply
- Allow the lamp to cool for at least 5 minutes
- Carefully remove the old lamp — avoid touching the glass with bare hands
- Insert the new lamp and ensure pins are fully seated
- Reassemble, restore water supply, and power on
- Reset your system’s lamp timer if applicable
Matching Glass Sleeve
Also need a replacement quartz glass sleeve? See our replacement glass sleeves collection for compatible options.
