Replacement Glass Sleeve for Puretec Hybrid G & R, WU-UV & Viqua VH410/2A UV Systems

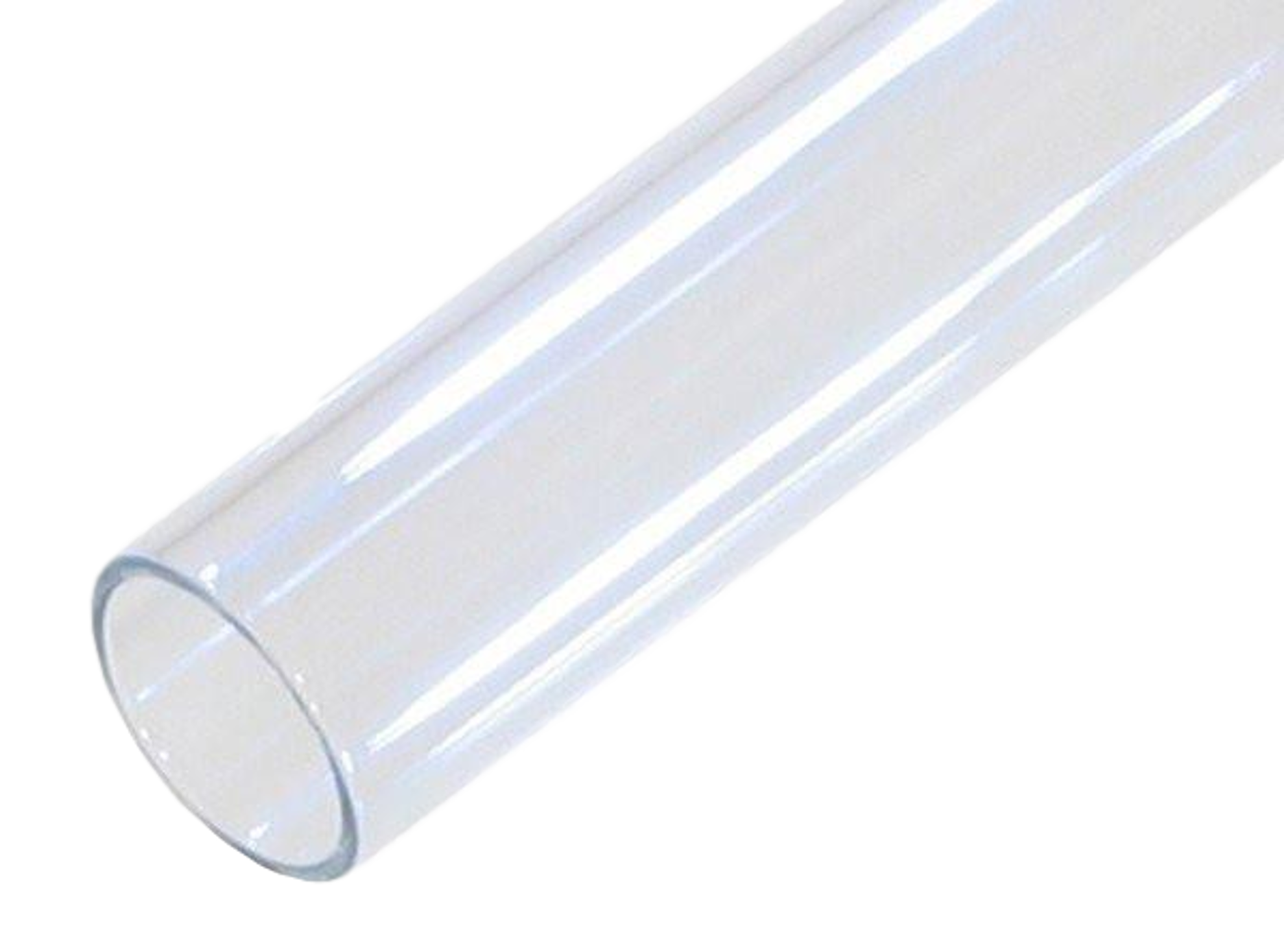

This replacement quartz glass sleeve suits Puretec Hybrid G and R series, WU-UV100, WU-UV200 and Viqua VH410/2A UV systems. The sleeve protects the lamp from direct water contact while allowing UV light to pass through the chamber. Replace it whenever it shows signs of cloudiness, scaling, or damage.
Specifications
- Length: 540mm
- Sleeve Type: Double Open Ended
- Material: Quartz glass
- OEM Reference: RQS6 (Puretec), QSO-410 (Viqua)
Compatible With
- Puretec Hybrid G series
- Puretec Hybrid R series
- Puretec WU-UV100
- Puretec WU-UV200
- Viqua VH410 / VH410/2A
- Replaces Puretec code RQS6 and Viqua code QSO-410
When Should You Replace the Glass Sleeve?
Inspect the sleeve whenever the UV lamp is replaced. If it shows cloudiness, mineral scale, staining, or cracking, replace it. Even light buildup can reduce UV effectiveness, especially in hard water or bore water systems.
Installation Notes
- Isolate water and power before opening the UV chamber
- Remove the old sleeve carefully to avoid breakage
- Clean the chamber seals before fitting the new sleeve
- Handle with clean gloves or a cloth to avoid fingerprints
- Check O-rings and replace if worn
Matching UV Lamp
Also need a replacement lamp? See the compatible UV lamp for Puretec Hybrid G & R / WU-UV — available separately.
