Description

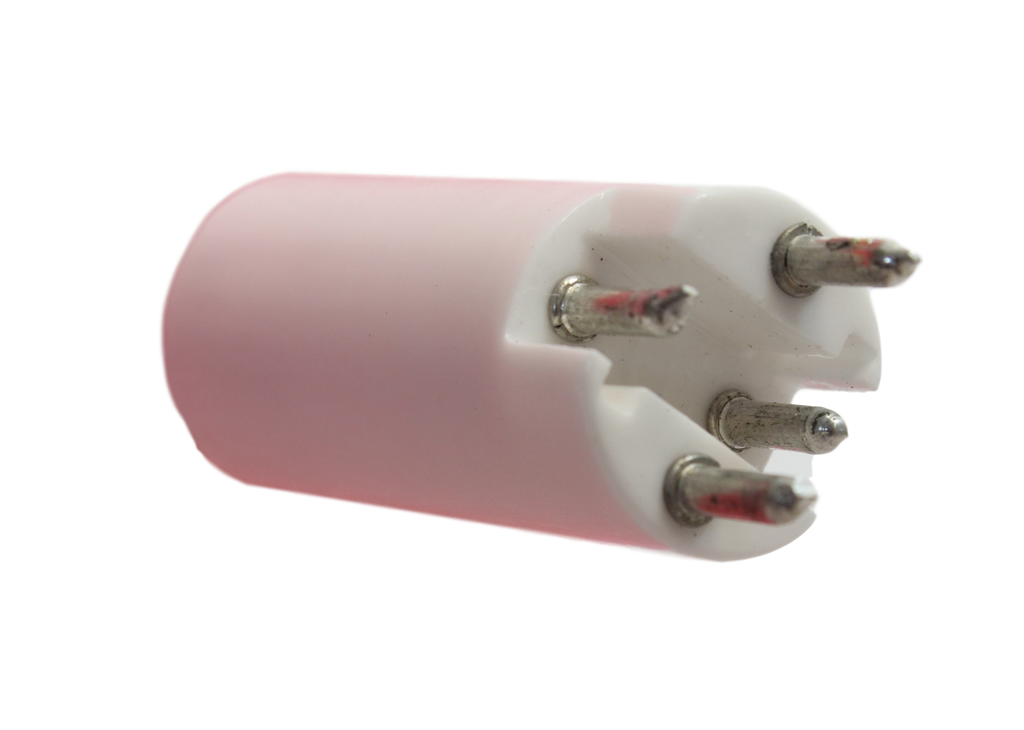

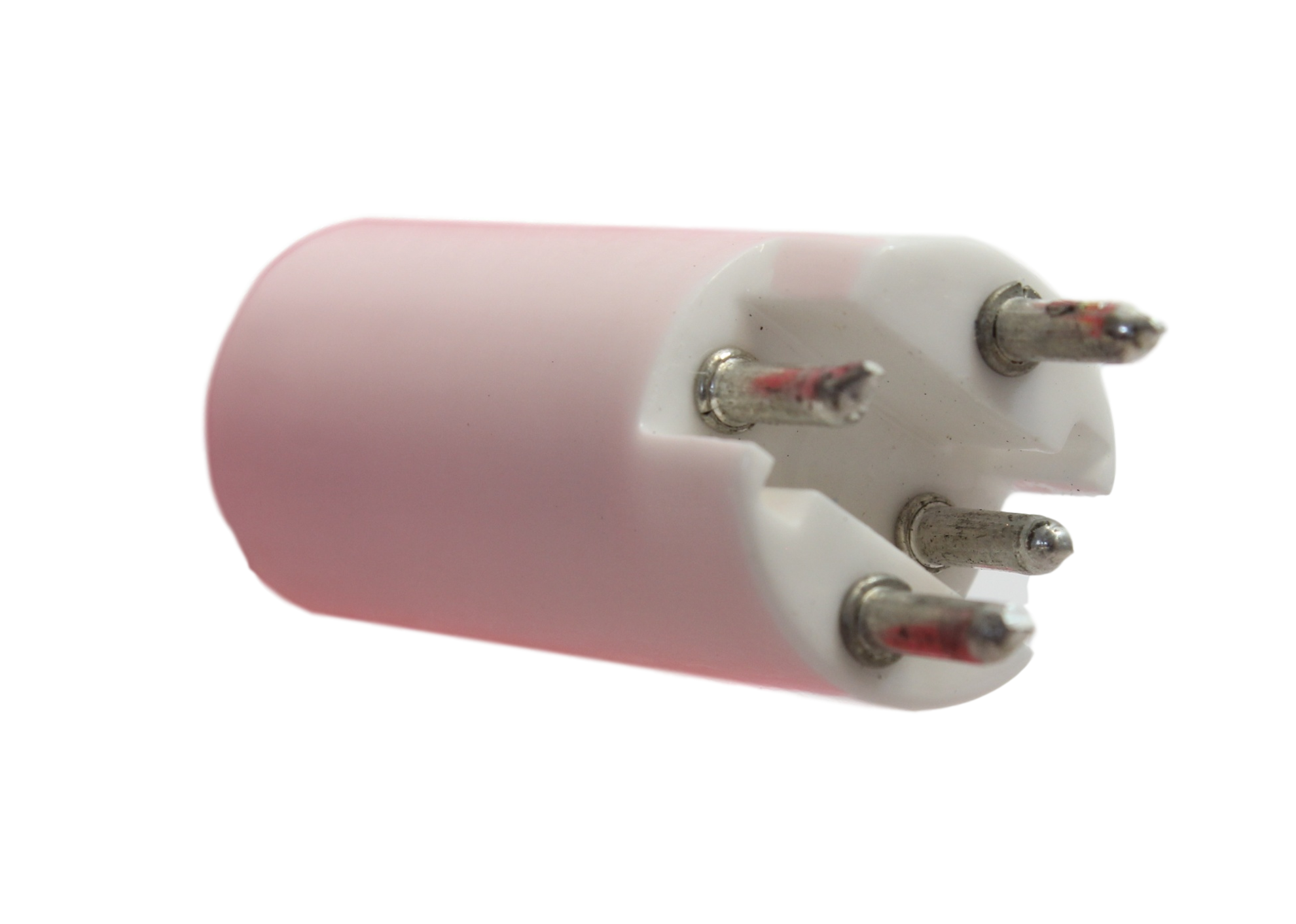

Replacement UV Lamp for Splenvue S12E UV Steriliser
Keep your Splenvue S12E UV steriliser delivering safe, bacteria-free water with this compatible replacement lamp. Annual replacement is essential — UV output degrades over time even when the lamp still appears to glow.
Compatibility
| Fits UV System | Replaces Part # |
|---|---|
| Splenvue S12E | UVSE12L |
Lamp Specifications
- Lamp Length: 840mm
- Wattage: 40W
- Pin Connection Type: Splenvue Pin
- Replaces Original Part: UVSE12L
Why Replace Annually?
UV lamps should be replaced every 12 months regardless of appearance. After one year of operation, UV output drops below the level required to effectively neutralise bacteria, viruses, and protozoa — even if the lamp is still glowing.
How to Replace Your UV Lamp
- Turn off the UV system and disconnect power
- Turn off the water supply
- Allow the lamp to cool for at least 5 minutes
- Carefully remove the old lamp — avoid touching the glass with bare hands
- Insert the new lamp and ensure pins are fully seated
- Reassemble, restore water supply, and power on
- Reset your system's lamp timer if applicable
Matching Glass Sleeve
Also need a replacement quartz glass sleeve? See the compatible glass sleeve for Splenvue S12E — available separately.
Local NZ Stock | Fast Shipping | NZ Customer Support
